[gembud] Not able to view model data in NMAP or NSHARP

Gembuds.



I'm experiencing problems trying to display model data.  I searched gembud
and found someone else who had a similar problem...but no response on how to
fix it.



If anyone has any insight on how to correct this.please let me know.
THANKS!



I was able to compile gempak 5.11.4 on my fedora 12 64-bit system using
gfortran.

I downloaded 12z gfshd from ncep and decoded via script.  I ran gdinfo and
the data is there.

  NUM       TIME1              TIME2           LEVL1 LEVL2  VCORD PARM
   94     100215/1200F000                        850         PRES HGHT

   95     100215/1200F000                        850         PRES TMPK

   96     100215/1200F000                        850         PRES RELH

   97     100215/1200F000                        850         PRES OMEG

   98     100215/1200F000                        850         PRES UREL

   99     100215/1200F000                        850         PRES VREL

  100     100215/1200F000                        850         PRES AVOR

  101     100215/1200F000                        850         PRES CWTR

 Parameters requested: GDFILE,LSTALL,OUTPUT,GDATTIM,GLEVEL,GVCORD,GFUNC.
 GEMPAK-GDINFO>l
 GDFILE   = $MODEL/gfs0.5deg/2010021512f000_gfs.gem
 LSTALL   = YES
 OUTPUT   = T
 GDATTIM  = f000
 GLEVEL   = 850
 GVCORD   = pres
 GFUNC    = all
 GEMPAK-GDINFO>

I ran gdplot2 and got this error

 GEMPAK-GDPLOT2>r
 Number of times =            1
           1  100215/1200F000

 PARAMETERS FOR GDPLOT : FRAME NUMBER  1 INITIAL PLOT SETTINGS -
    GDFILE=$MODEL/gfs0.5deg/2010021512f000_gfs.gem, GDATTIM=100215/1200F000
    GAREA=mci, PROJ=MER, MAP=1, LATLON=
    PANEL=0, TITLE=1
    OVERLAY  TYPE       LEVEL           VCORD       GRID FUNCTION
        1    C          850             PRES        HGHT
 [DG -7]  Input grid HGHT ^100215/1200F000 @850 %PRES cannot be found.
 [GDPLOT 2]  The requested scalar/vector cannot be computed.

I get same error in nmap2.



I also cannot view anything in nsharp.





Brian Koochel

Weather Center Manager

6342 Long, Suite D

Shawnee, Kansas  66216

913-722-3955 - telephone

800-996-7668 - toll free

WeatherorNot.com

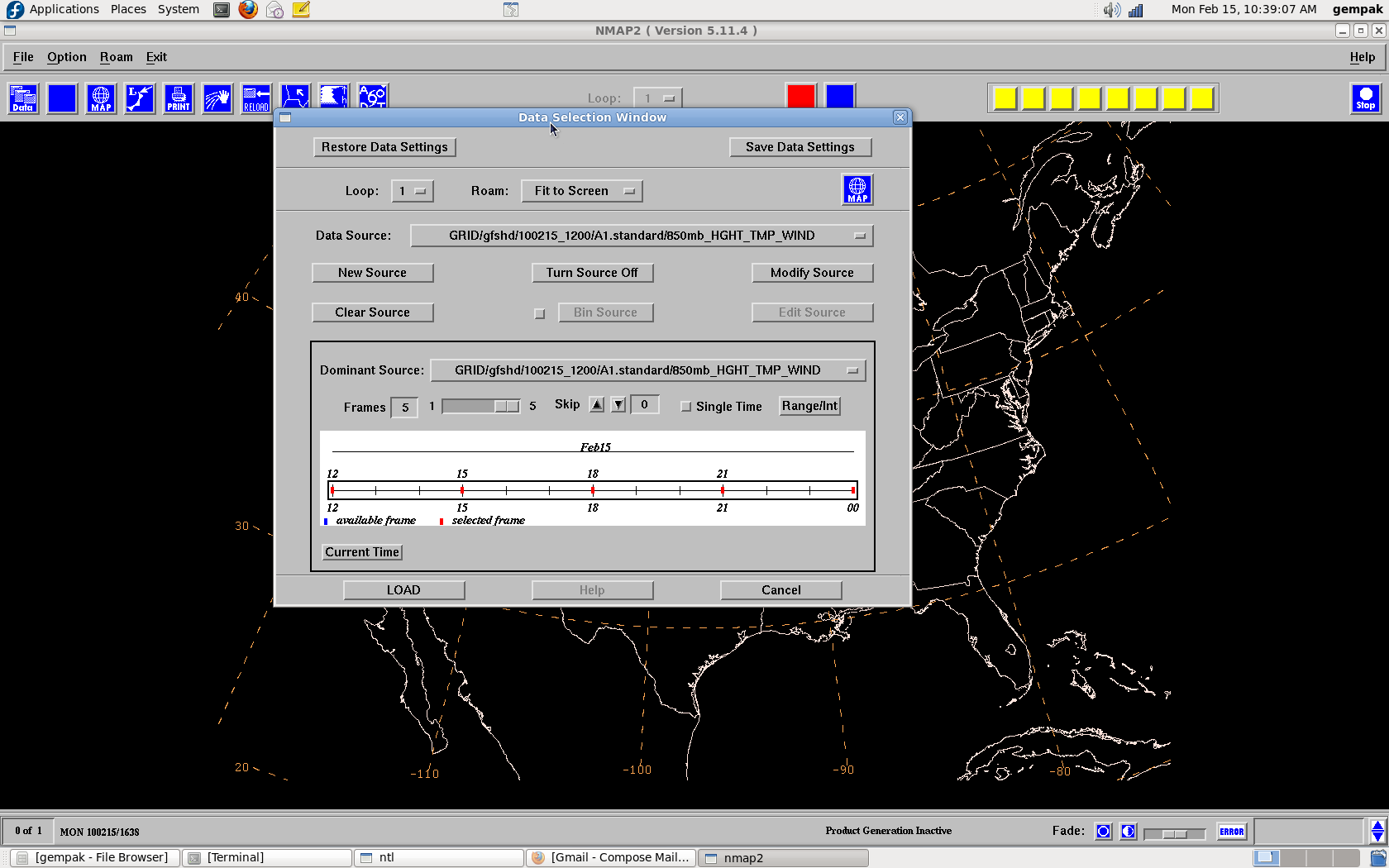

Attachment: nmap_data.png
Description: PNG image

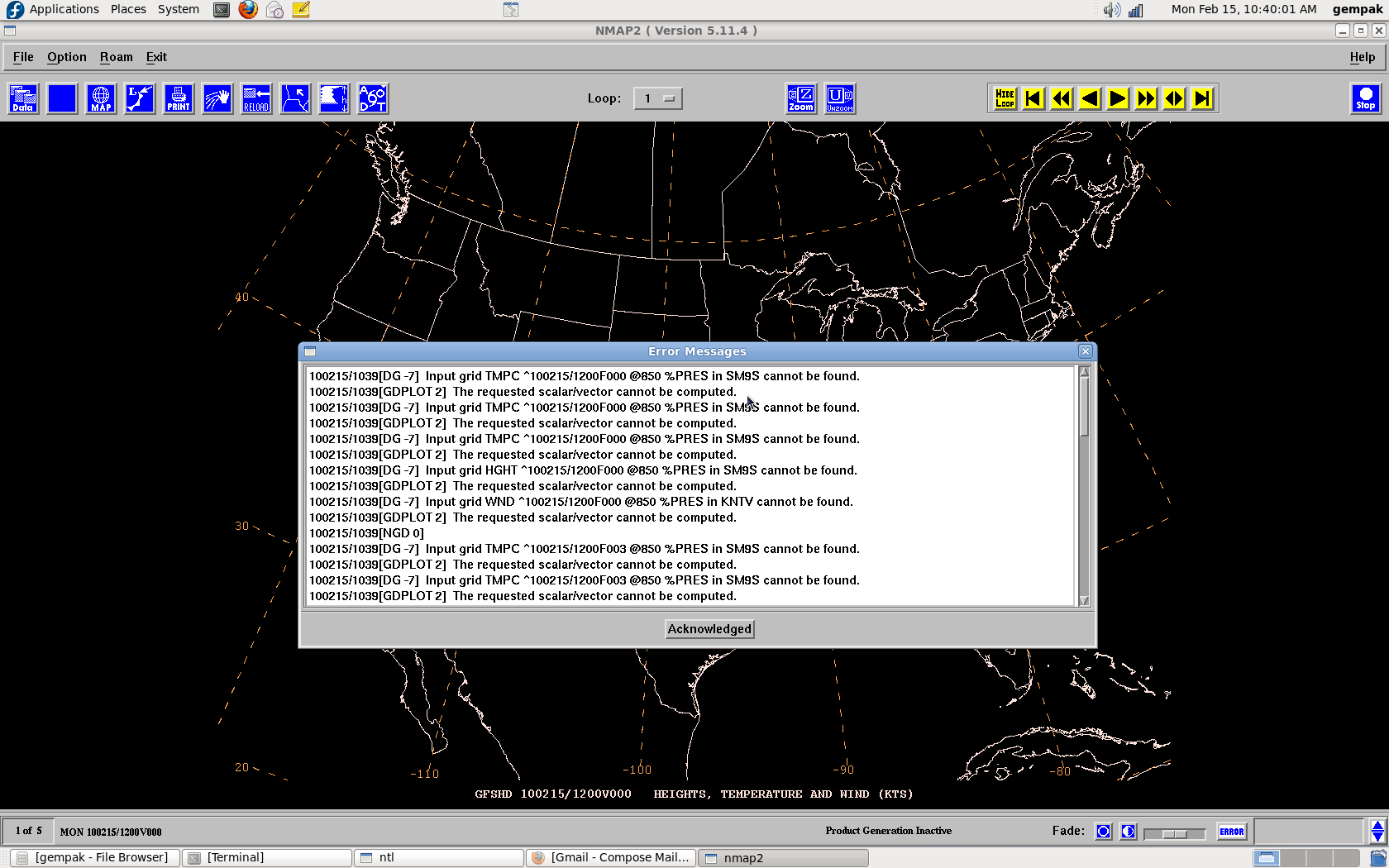

Attachment: nmap_error.png
Description: PNG image
